Mounted Ducted Aspen Cooler
DA
COOLING
Down/Side
Ducted Cooler
Specifications Dimensions
| Model | Air Delivery VS Static Pressure | HP | Motor Elec. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Nom. | Water Inch Column | 115V / 60HZ | |||||||
| CFM | 0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | High / Low | ||
| Dx5100 | 5100 | 3770 | 3620 | 3390 | 3080 | 2870 | 2610 | 1/2 | 5.5A / 3.1A |
| Dx7500 | 7500 | 5030 | 4810 | 4590 | 4360 | 4080 | 3900 | 3/4 | 7.3A / 5.2A |
| Model | Air Discharge Type | Drive | Cabinet Dims. In | Duct Location | Drain Location | Pan Dim. In. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Opening | Position | Position | |||||||
| H | W | D | A | B | E | F | G | J | K | |||
| Dx5100 | Down, side | Direct | 25 5/8 | 32 | 31 | 18 1/2 | 16 1/2 | 7 3/4 | 5 7/8 | 16 | 4 1/8 | 4 |
| Dx7500 | Down, side | Direct | 32 | 36 | 35 | 20 | 20 | 8 | 7 1/2 | 18 | 4 3/4 | 4 7/8 |
Side Discharge
Side View
Bottom View

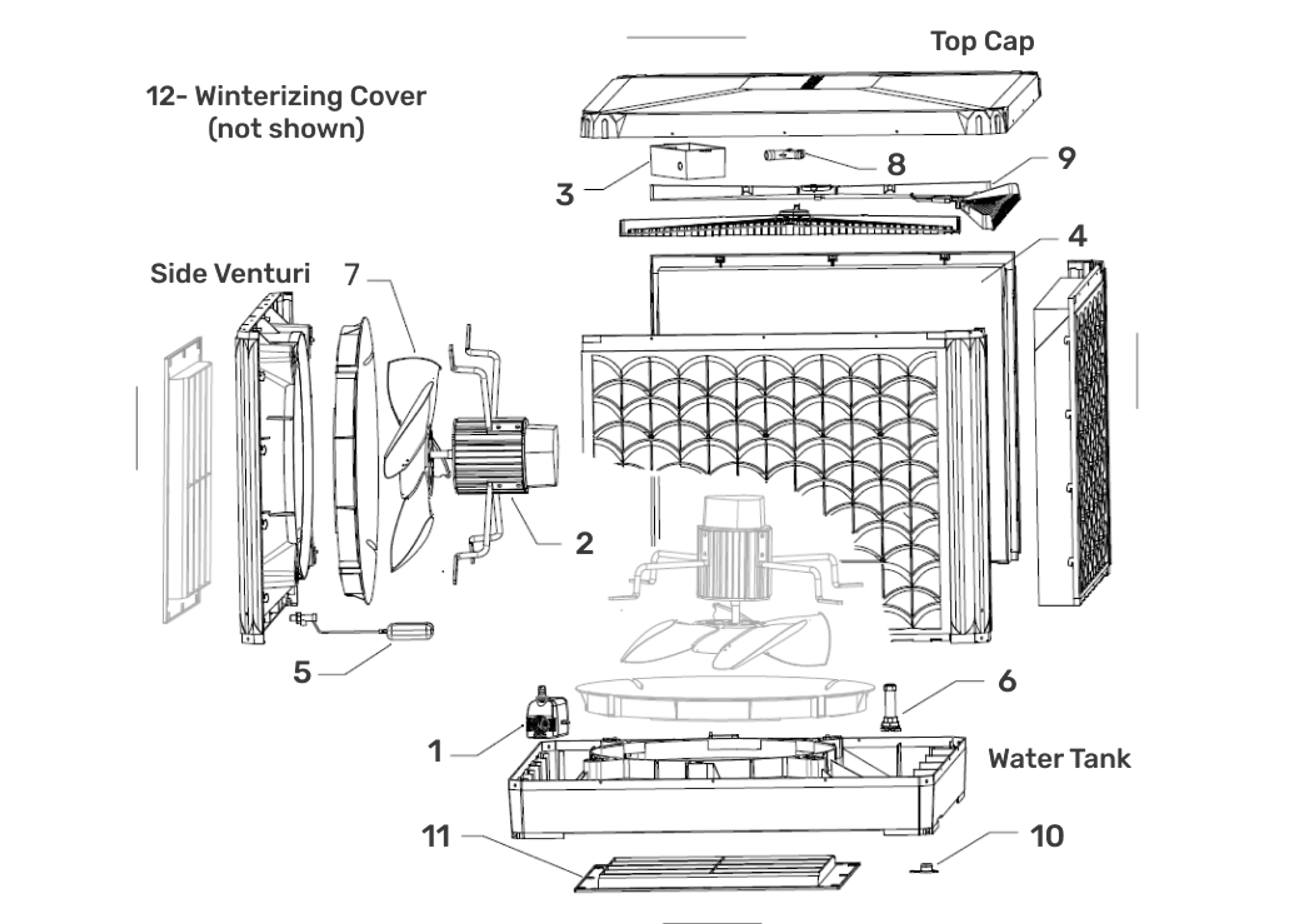

Parts Illustration
| # | Parts Description | DX4800 | DX6800 |
|---|---|---|---|
| 1 | Pump | 6060050 | 6091050 |
| 2 | Motor | B300-4V2 | B550-4V2 |
| 3 | Control Box | 6001017 | 6001017 |
| 4 | Media Pad Set (3 piece set) | CP4800 | CP6800 |
| 5 | Float Valve | 85023 | 85023 |
| 6 | Overflow Tube | 14216 | 14216 |
| 7 | Prop (fan blade) | 9001731 | 9001730 |
| 8 | Water Distributor | 6000707 | 6000710 |
| 9 | Water Diverter | 6000708 | 6000708 |
| 10 | Silicone Drain Plug | 6017081 | 6017081 |
| 11 | Panel Cover | DP4800 | DP6800 |
| 12 | Winterizing Cover (not shown) | CVR4800 | CVR6800 |
