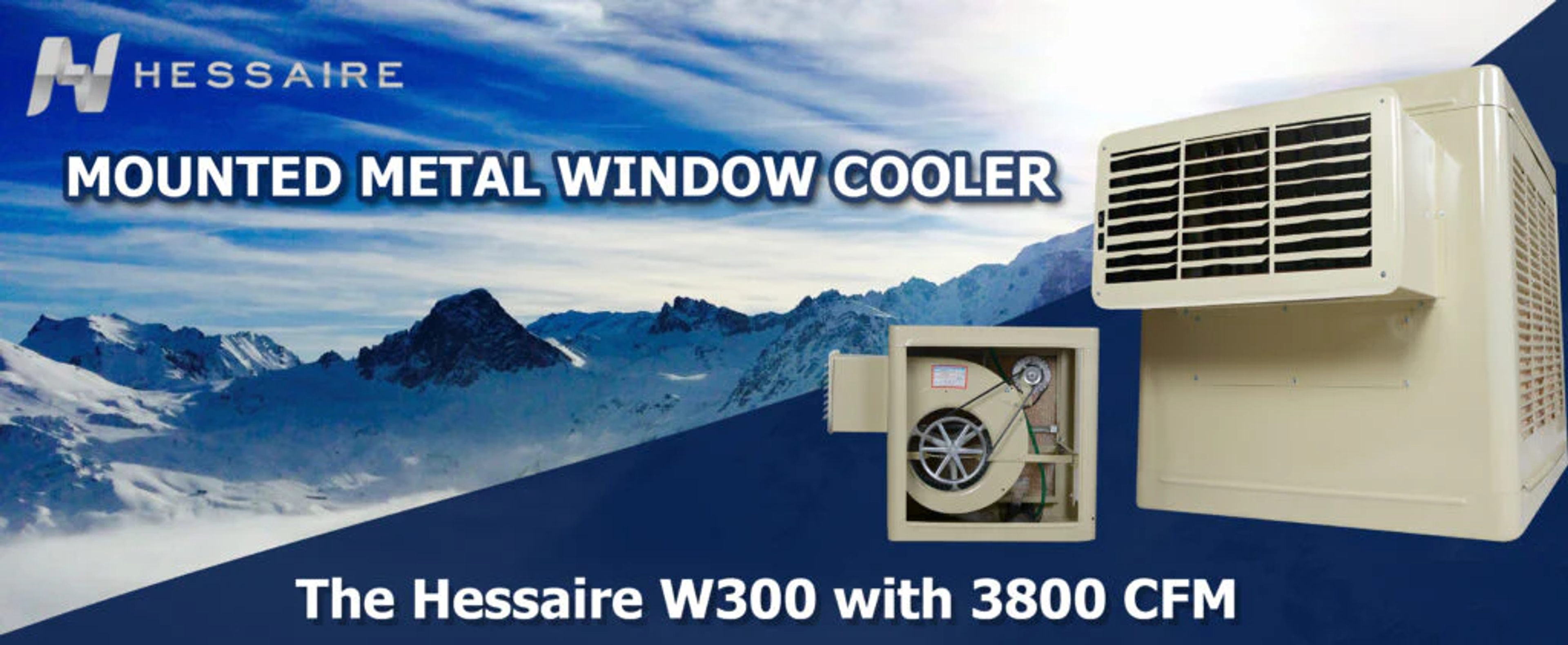

Mounted Metal Window Cooler
The Hessaire W3800 evaporative window cooler is the perfect solution for your apartment/home. With an air volume of 3800 CFM, this high quality product will comfortably cool a 600 sq. ft. area. Our window coolers are built from heavy 24-Gauge galvanized steel, with baked-on polyester UV resistant powder paint to withstand outside conditions. Use with a 1/3 HP 2-speed motor kit.
The Smart, All Natural Cooling for the Environmentally & Energy Conscious.
El sistema Inteligente y Totalmente Natural de Enfriamiento para usted que se preocupa por el Medio Ambiente y el Consumo de Energía.
Features
- Cost–effective cooling with natural aspen pads
- Fully assembled for easy installation 3 Sizes to
- meet your cooling need 2-speed motor
- designed specifically for evaporative coolers
Características
- Enfriamiento de bajo costo con filtros naturales de aspen
- Totalmente ensamblado para fácil instalación.
- 3 La medida perfecta para sus necesidades de enfriamiento
- Motor de 2 velocidades diseñado especialmente para enfriadores evaporativos.
Window Cooler Sizing / Area que cubre
| Model Modelo | Approximate Square Footage Cooled*Área que cubre aprox. en pies cuadrados* | ||
| A | B | C | |
| W48 | 1100 | 1300 | 1500 |
| W38 | 900 | 1100 | 1300 |
| W28 | 500 | 600 | 700 |

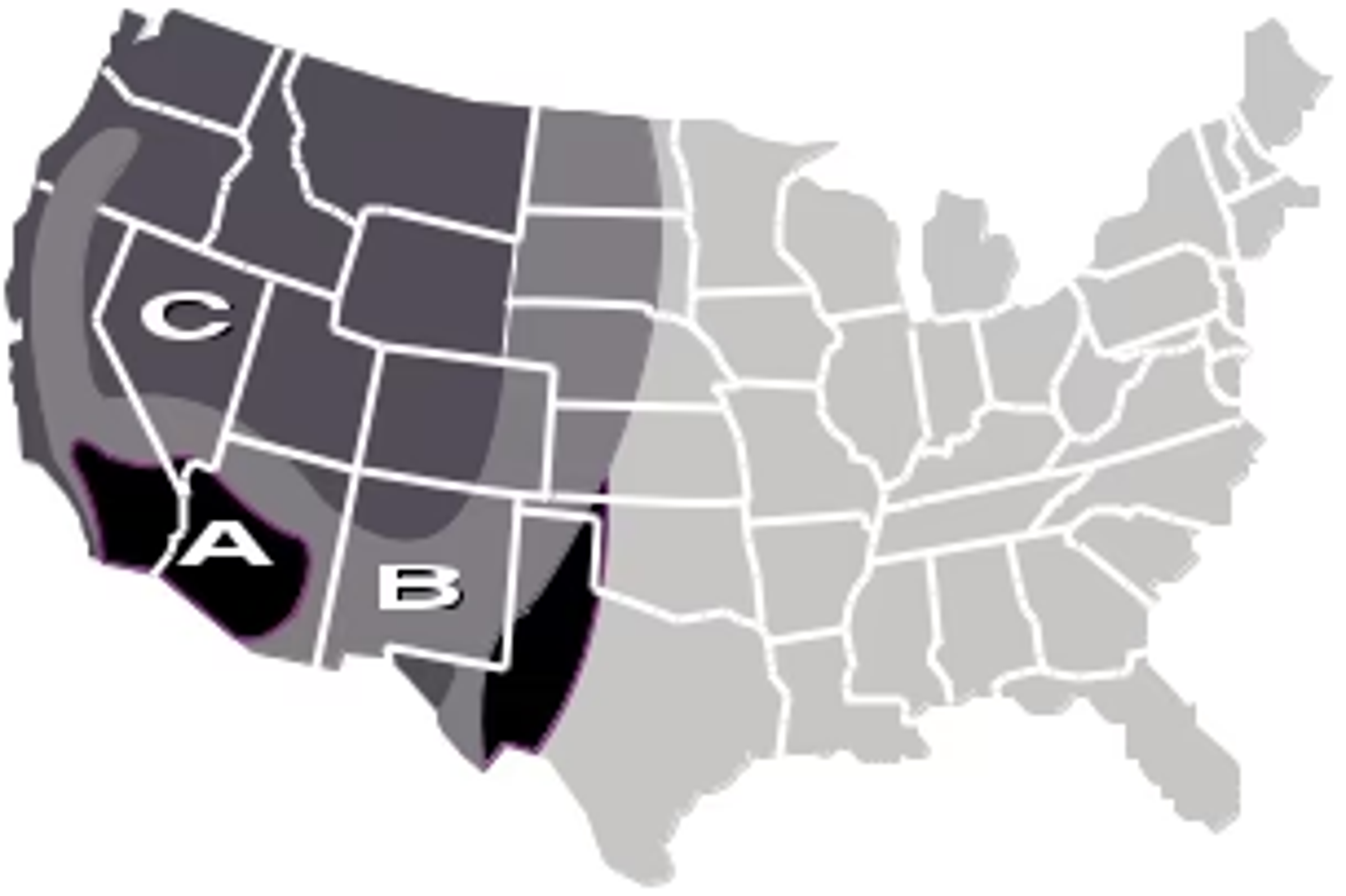

- Select the area (A, B, or C) where you live from map.
- Choose the approximate square footage you would like to cool from the chart.
- Buy the model that best matches yoursquare footage.
- Seleccione el area donde usted habita (A, B, or C).
- Seleccion dela tabla. el area aproximada a enfriar en pies cuadrados.
- Adquiera el modelo que mejor se adapte al area a cubrir.
Hessaire Single-Inlet, Rigid Media Residential Ducted Coolers

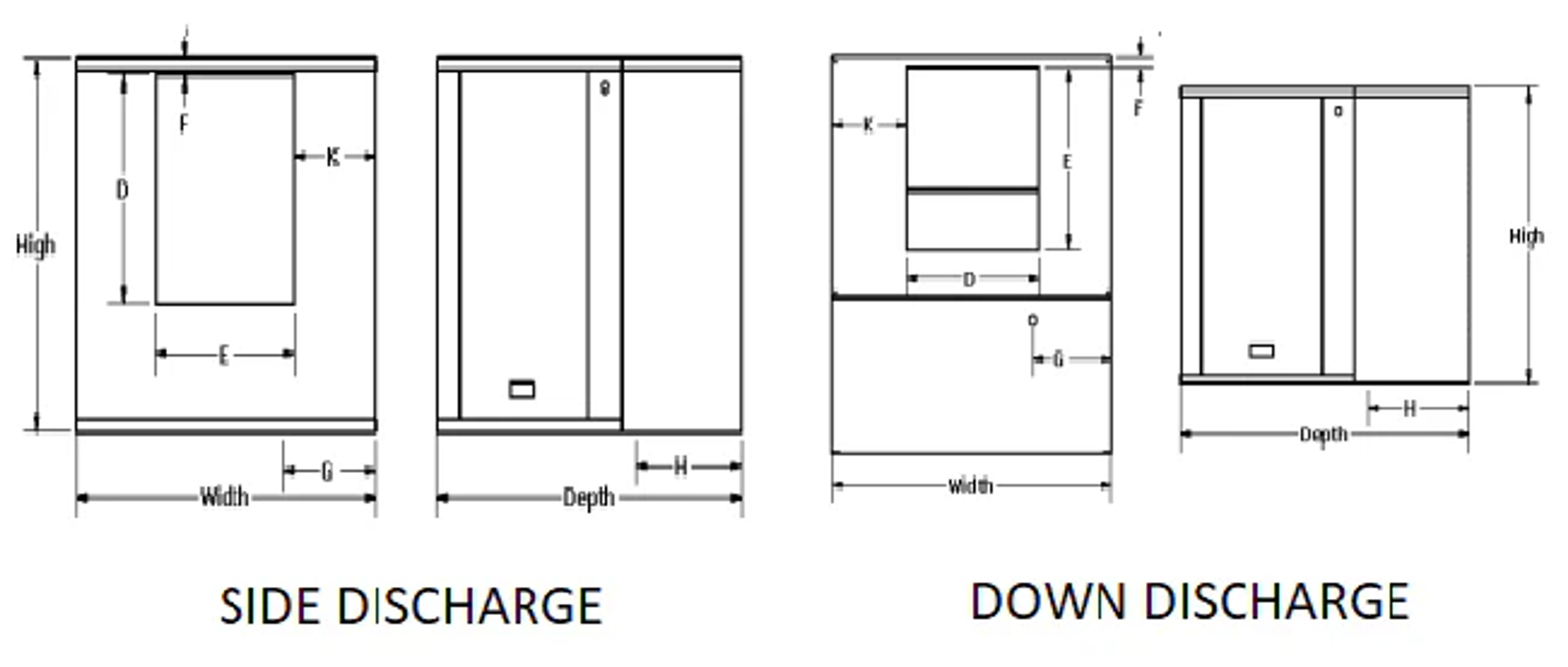

| Model Modelo | AirDischarge de descarga de aire | Cabinet Dimensions Medidas Gabinete | Duct Location Localización del Ducto | Drain Location Local. Dren | ||||||
| Height Alto H | Width Ancho W | Depth Profund. D | D | E | K | F | G | H | ||
| RM4808S | Side | 271/4 | 42 | 43 | 173/4 | 173/4 | 121/8 | 11/4 | 12 | 141/2 |
| RM6808S | Side | 321/4 | 42 | 43 | 193/4 | 193/4 | 111/8 | 11/4 | 12 | 141/2 |
| RM4812S | Side | 271/4 | 42 | 47 | 173/4 | 173/4 | 121/8 | 11/4 | 12 | 141/2 |
| RM6812S | Side | 321/4 | 42 | 47 | 193/4 | 193/4 | 111/8 | 11/4 | 12 | 141/2 |
| RM4808D | Down | 271/4 | 42 | 43 | 173/4 | 173/4 | 121/8 | 11/4 | 12 | 141/2 |
| RM6808D | Down | 321/4 | 42 | 43 | 193/4 | 193/4 | 111/8 | 11/4 | 12 | 141/2 |
| RM4812D | Down | 271/4 | 42 | 43 | 173/4 | 173/4 | 121/8 | 11/4 | 12 | 141/2 |
| RM6812D | Down | 321/4 | 42 | 43 | 193/4 | 193/4 | 111/8 | 11/4 | 12 | 141/2 |

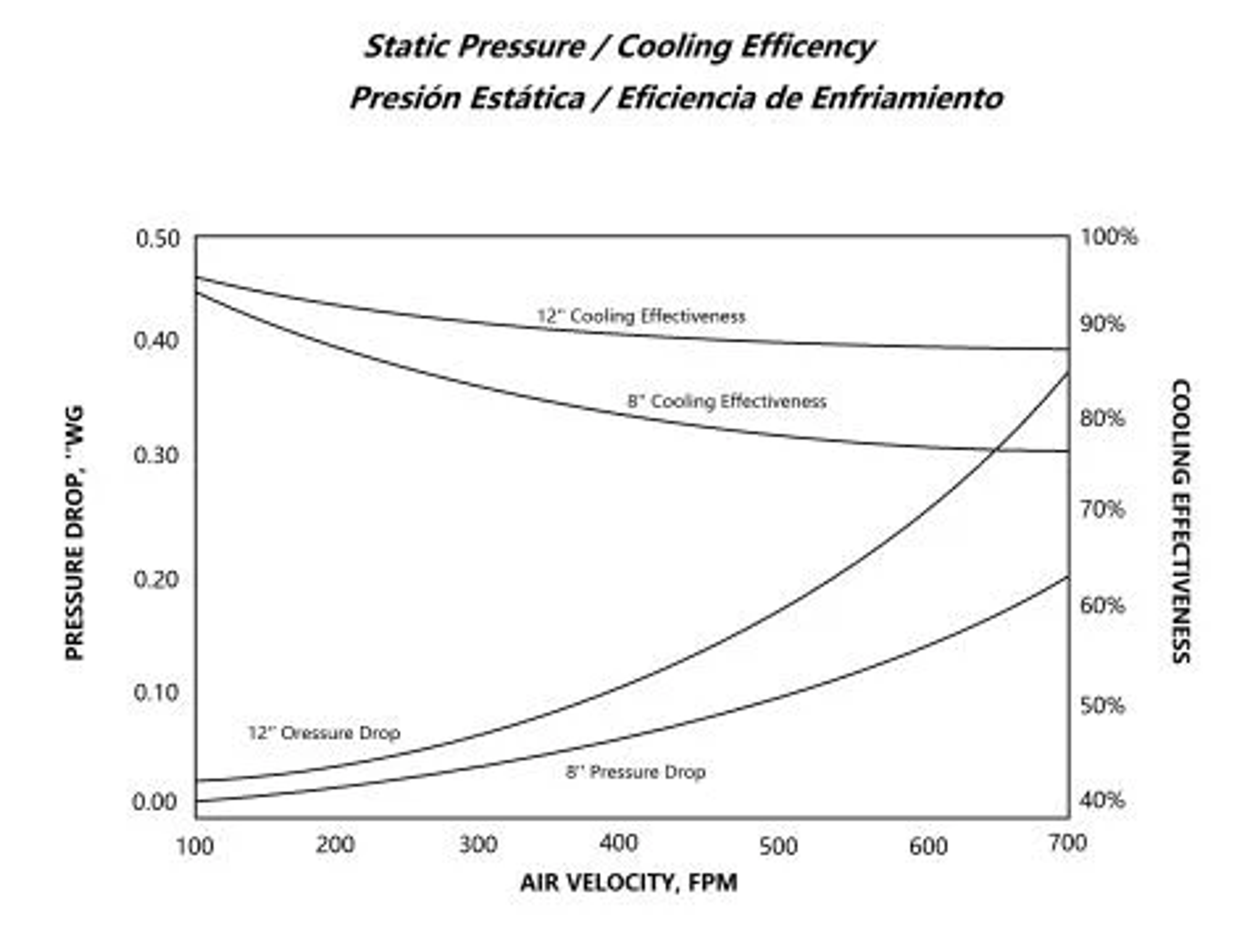

| Model Modelo | cations Espec. Eléctricas | Industry Industrial Standard Rating | CFM (pies cúbicos por minuto) presión estática en pulg. de agua | |||||||||
| HP | Speed | Volts | Amps | Hertz | 0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | ||
| RM4808S | 3/4 | 2 | 115 | 10.2 | 60 | 4800 | 3600 | 3400 | 3200 | 3000 | 2800 | 2600 |
| RM6808S | 1 | 2 | 115 | 10.2 | 60 | 4800 | 3600 | 3400 | 3200 | 3000 | 2800 | 2600 |
| RM4812S | 3/4 | 2 | 115 | 12.7 | 60 | 6800 | 4400 | 4200 | 4200 | 3800 | 3600 | 3400 |
| RM6812S | 1 | 2 | 115 | 10.2 | 60 | 4800 | 3600 | 3400 | 3200 | 3000 | 2800 | 2600 |
| RM4808D | 3/4 | 2 | 115 | 10.2 | 60 | 4800 | 3600 | 3400 | 3200 | 3000 | 2800 | 2600 |
| RM6808D | 1 | 2 | 115 | 10.2 | 60 | 4800 | 3600 | 3400 | 3200 | 3000 | 2800 | 2600 |
| RM4812D | 3/4 | 2 | 115 | 10.2 | 60 | 4800 | 3600 | 3400 | 3200 | 3000 | 2800 | 2600 |
| RM6812D | 1 | 2 | 115 | 10.2 | 60 | 4800 | 3600 | 3400 | 3200 | 3000 | 2800 | 2600 |
S = side discharge
08 = 8" rigid media
D = down discharge
12 = 12" rigid media
HESSAIRE Window Coolers

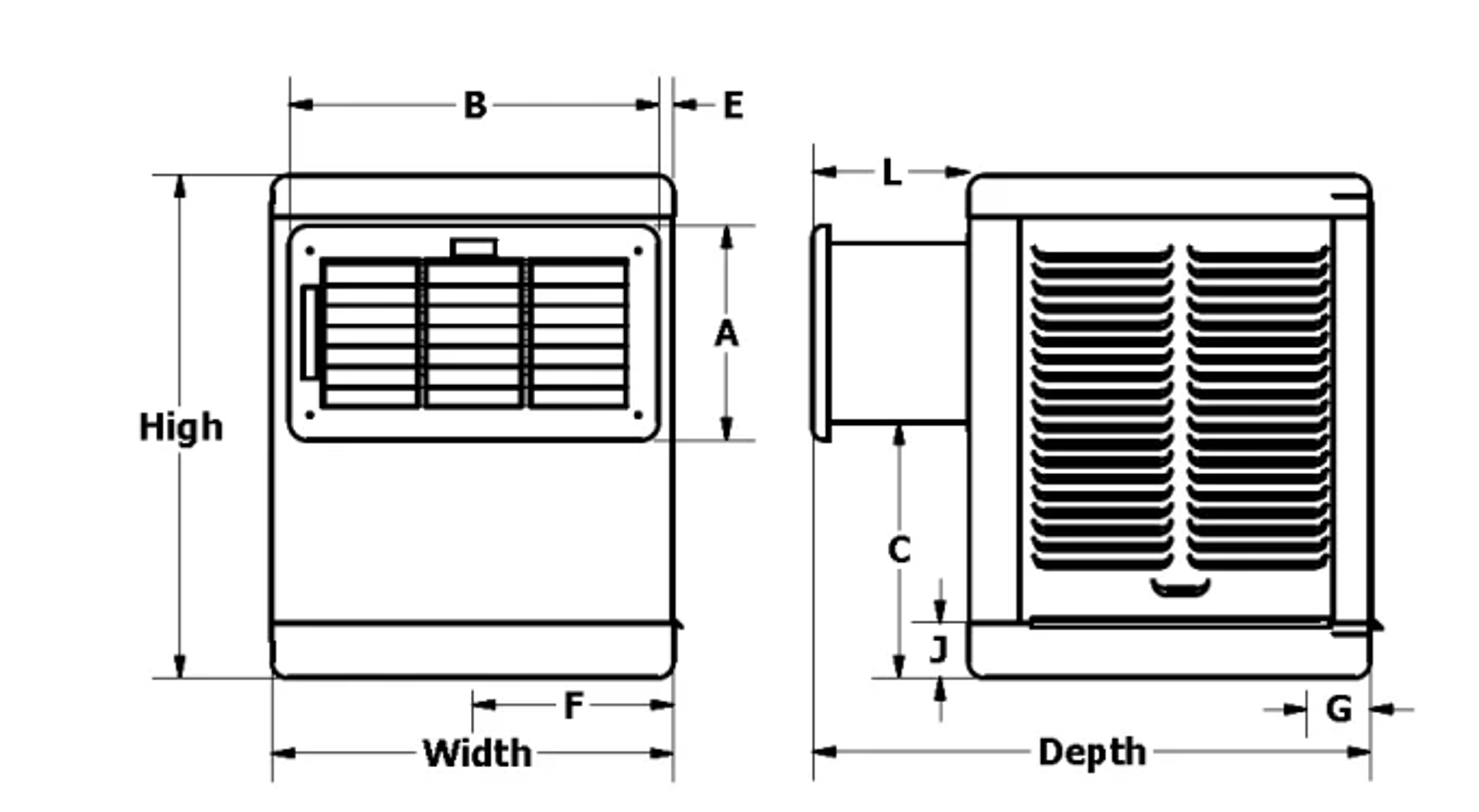

| Model Modelo | Cabinet Dimensions Medidas Gabinete | Duct Location Localización del Ducto | ||||||
| Height Alto H | Width Ancho W | Depth Profund. D | A | B | L | C | E | |
| W28 | 27 | 217/8 | 217/8 | 95/8 | 1811/16 | 9 | 141/2 | 13/4 |
| W28 | 281/4 | 281/4 | 281/4 | 103/4 | 225/16 | 915/16 | 133/16 | 3 |
| W28 | 351/4 | 34 | 34 | 121/4 | 231/8 | 99/16 | 171/4 | 51/4 |
| Model Modelo | Drain Location Local. Dren | Bottom Pan Depth Prof. Charola | Pads(in) Filtros | |||
| F | G | J | # | Height Altura | Width Anchura | |
| W28 | 11 | 65/16 | 3 | 3 | 23 | 171/2 |
| W38 | 141/4 | 51/4 | 31/2 | 3 | 227/16 | 223/4 |
| W48 | 179/16 | 51/4 | 31/2 | 3 | 291/4 | 281/2 |
| Model Modelo | Blower Wheel/Turbina | Belt Banda | Blower Pulley(in) Polea del soplador (en) | Weight (lbs) Peso (lbs) | |||
| Width | Diameter | Shaft | Length | Diameter | Shipping | Working | |
| W28 | 9 | 8 | 1/2 | N/A | N/A | 56 | 96 |
| W38 | 12 | 12 | 5/8 | AL-450 | 7 | 80 | 181 |
| W48 | 16 | 16 | 5/8 | AL-590 | 11 | 123 | 262 |
| Model Modelo | cations Espec. Eléctricas | ||||
| HP | Speed | Volts | Amps | Hertz | |
| W28 | 1/8 | 2 | 115 | 3.2 | 60 |
| W38 | 1/3 | 2 | 115 | 5.5 | 60 |
| W48 | 1/2 | 2 | 115 | 7.5 | 60 |
